Development Boards

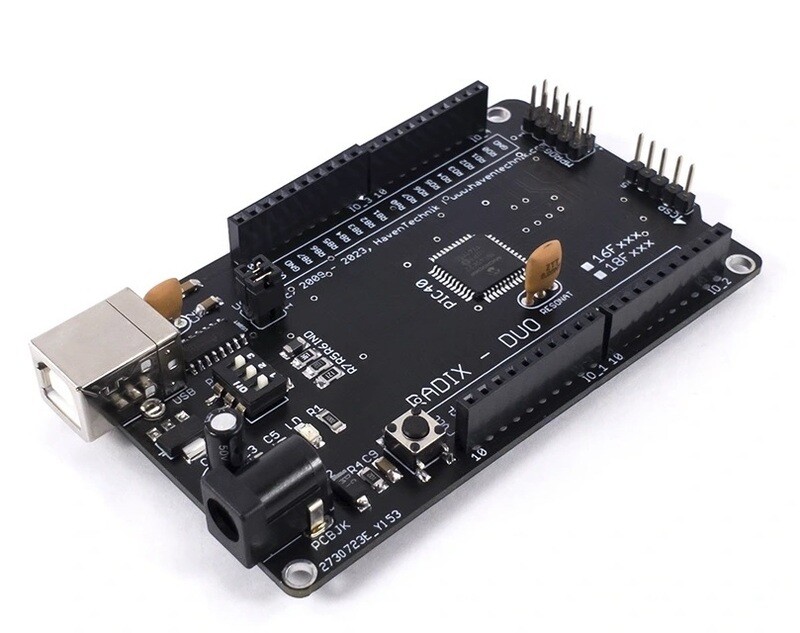

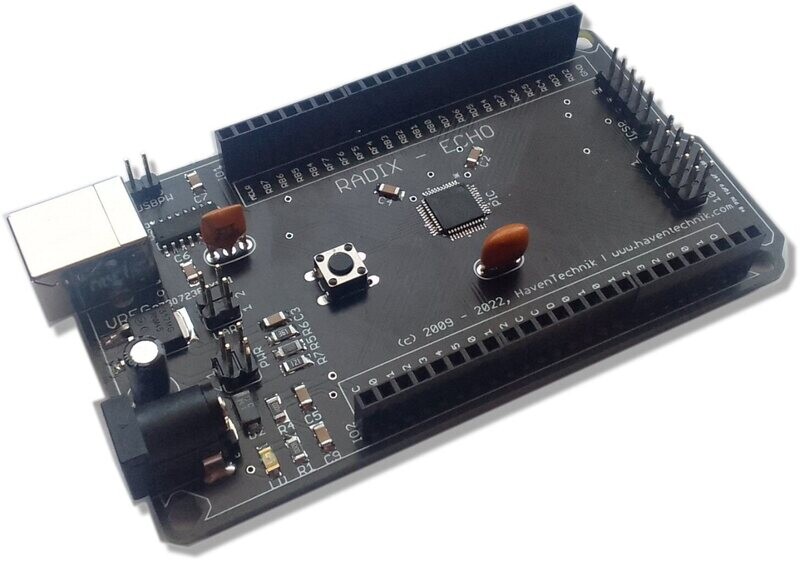

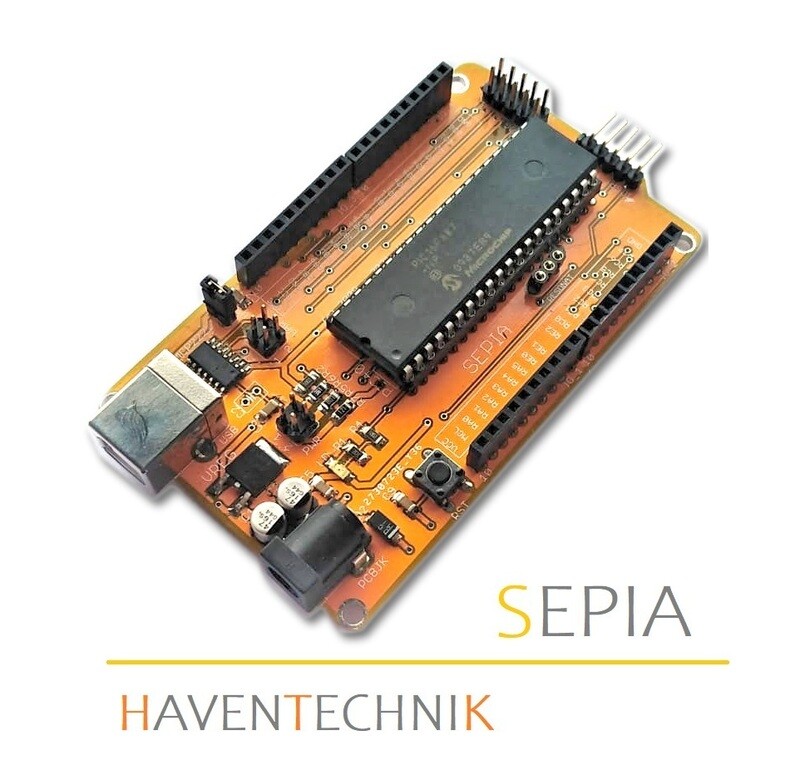

PIC Development Boards provide a platform for rapid prototyping. The PCB hosts all the required circuitry to allow the micro-controller to power up and be programmed and run to develop code, test concepts, and simulate the operation of an eventual product or system.

• Jumper selectable PSU 3v3 | 5v0
• USB-UART, self-powered via the USB cable when attached to PC
• Reset button
• Power LED
• All IO tracked to headers
• ICSP (In - Circuit Serial Programming) *

Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. HavenTechnik's range of products is a cost-effective and well-supported tool with an efficient toolchain that will assist in completing projects and getting products to market.
