RADIX ECHO
Product Details
Weight: 0.10 kg

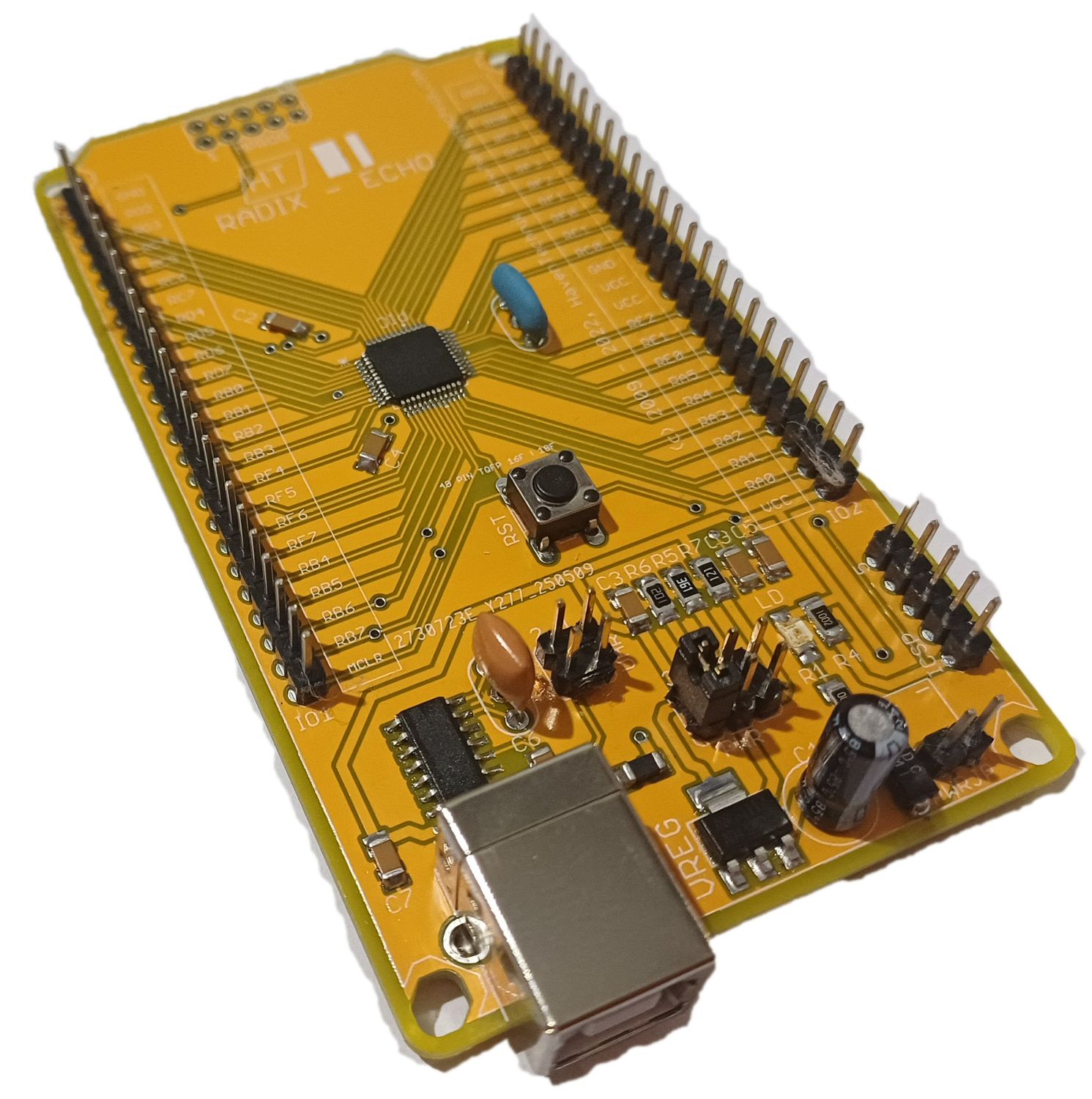

RADIX - ECHO is a compact and versatile PIC development PCB, economized for size and portability. Supporting the 16F and 18F 48 PIN range of devices, the PCB delivers an efficient and effective development experience. The PCB includes USB UART (useful for boot-loading), onboard power supply, ICSP header, and all IO tracked to headers.
The PIC18F47K42 is the 44 PIN TQFP smaller family member of the PIC18F57K42 TQFP device. Since the devices are of the same family, you can use the two development boards interchangeably.
| Specifications | RADIX - ECHO |
| DC Jack | YES |
| Input Voltage | > 7Vdc < 9Vdc |
| USB Powered Capable | YES |
| Device Programming | ICSP | USART Bootloader *Device dependant |
| Power Supply | LM317 based configurable PSU, setting for 3v3 and 5V0 |
| Package | 48 PIN SMT TQFP |
| Device | Available Devices: PIC18F56K42 | PIC18F57K42 |
| LED | Reset Button | YES |
| Headers Ported | PORTs tracked to headers |
| USB UART | CHG340 |
