ACTUATE RELAY 4 CHAN
Product Details

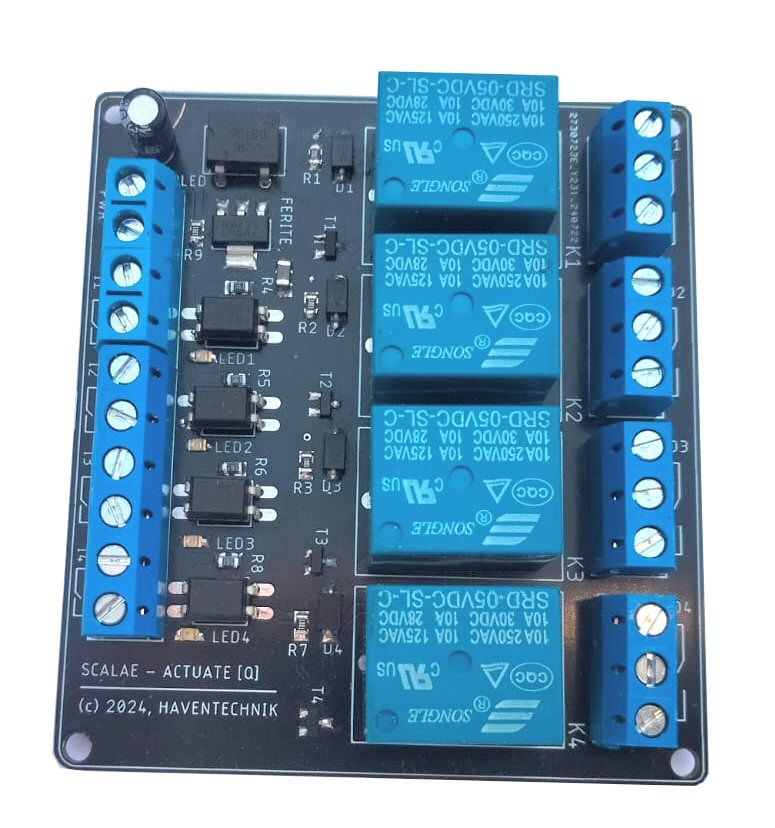

The SCALAE RELAY 4CH is an automation expansion module. The module offers opto-coupled isolation, relay outputs, and LED indication. View documentation here Actuate Relay 4 CHAN
The layout incorporates:
- 4 Opto-coupled Inputs
- 4 Relay Outputs
- LED Indicator
- On board PSU
SPECIFICATIONS
|
Power In |
7 Vdc | Vac – 30 Vac |
|
|
Inputs |
Opto-coupled Inputs |
|
|
Outputs |
Relay Outputs |
|
|
|
||
|
|
||
|
Relay Specifications |
Coil |
5Vdc |
|
|
NO |
10A, 120VAC |
|
|
NC |
½ HP, 125VAC |
|
|
||
|
Connection |
Edge connectors, screw terminals |
|
|
|
||
|
Actuation |
Closed circuit to ground |
|
|
Indication |
LED on for power LED on when relay actuates |
|
